BAR Honda 005 - technical specifications.

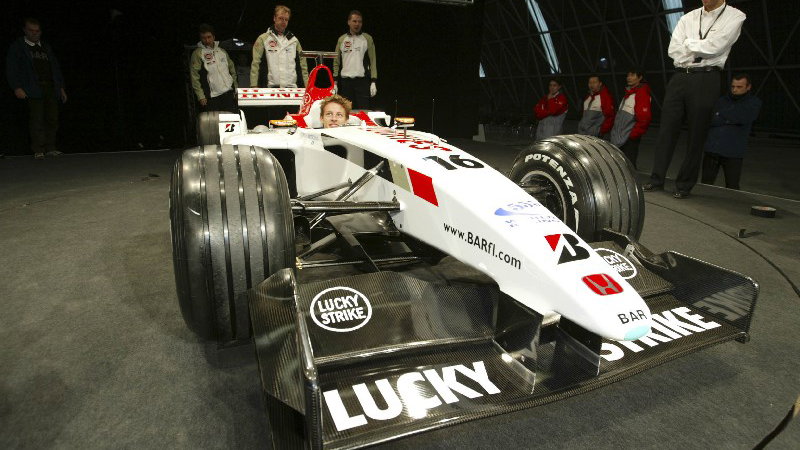

Complete technical specifications for the new BAR Honda 005, launched today [Tuesday] at the Circuit de Catalunya, Barcelona, Spain.
Chassis - BAR 005:
Construction: Moulded carbon fibre and honeycomb composite structure that surpasses latest FIA impact and strength regulations.
Front suspension: Wishbone and pushrod-activated torsion springs and rockers, mechanical anti-roll bar.
Rear suspension: Wishbone and pushrod-activated torsion springs and rockers, mechanical anti-roll bar.
Dampers: Koni.

Complete technical specifications for the new BAR Honda 005, launched today [Tuesday] at the Circuit de Catalunya, Barcelona, Spain.
Chassis - BAR 005:
Construction: Moulded carbon fibre and honeycomb composite structure that surpasses latest FIA impact and strength regulations.
Front suspension: Wishbone and pushrod-activated torsion springs and rockers, mechanical anti-roll bar.
Rear suspension: Wishbone and pushrod-activated torsion springs and rockers, mechanical anti-roll bar.
Dampers: Koni.
Wheels: BBS forged magnesium.
Front: 325mm wide.
Rear: 360mm wide.
Tyres: Bridgestone Potenza radials.
Brakes: AP Racing.
Front: 2 x 6-piston calipers.
Back: 2 x 6-piston calipers.
Brake discs/pads: Carbon/carbon.
Steering: B?A?R power assisted Rack and Pinion.
Steering wheel: B?A?R carbon fibre construction.
Driver's seat: Anatomically formed carbon composite.
Seat belts: Six-point harness (50mm shoulder straps with H.A.N.S system).
Fuel cell: ATL kevlar-reinforced rubber bladder.
Fuel capacity: 100kg.
Fuel provider: Elf.
Lubricants provider: Nisseki.
Battery: 12v 5Ah lead acid
Instrumentation: B?A?R steering wheel dash display.
Engine - Honda:
Name: Honda RA003E
Displacement: 3.0 litres
Configuration: V10, naturally aspirated.
Cooling system: IMI/Marston Air/oil - air/water heat exchangers
Transmission:
Gearbox: B?A?R - Xtrac 7-speed unit.
Gear selection: Sequential, semi-automatic, hydraulic activation.
Clutch: AP, triple-plate carbon.
Dimensions:
Front track: 1460mm.Rear track: 1420mm.Wheel base: 3140mm.Overall length: 4465mm.Overall height: 950mm.Overall width: 1800mm.
