Ford Fiesta JWRC - technical specifications.

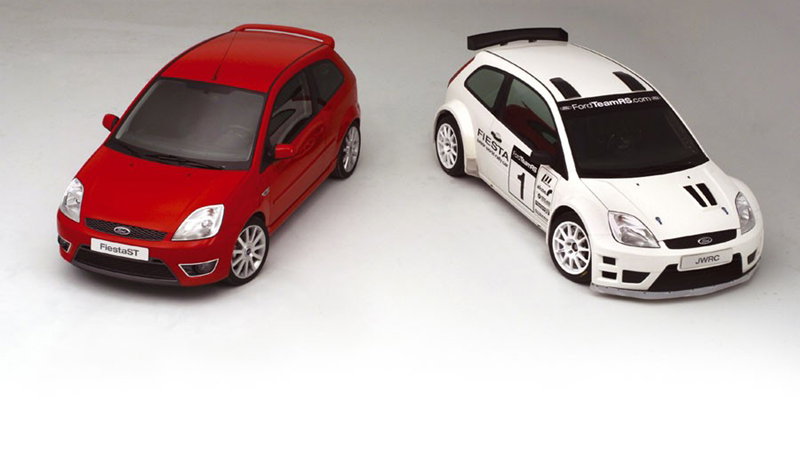

Complete technical specifications for Ford TeamRS's new Fiesta Junior World Rally Car [JWRC], unveiled this evening at the Geneva Motor Show.

Engine: Ford 1.6-litre Duratec engine with aluminium head, block and sump. Four-cylinders, 16 valves. Pi Research electronic engine management system. Wet sump lubrication. Catalytic converter.

Power: 220 PS at 8250 rpm. Torque 20.5 kgm at 6750rpm

Fuel tank: 55-litre capacity / located below rear floor.

Transmission: Front-wheel drive with Hewland six-speed sequential close-ratio gearbox with mechanical paddle shift. Mechanical plate type limited slip differential. Alcon cerametallic clutch with aluminium pressure plate.

Suspension:

Front: MacPherson struts with adjustable spring platforms. Dynamic dampers with external reservoirs adjustable in compression and rebound. Adjustable anti-roll bar.Rear: Ford Rallye Sport trailing arm beam. Dynamic dampers with external reservoirs adjustable in compression and rebound.

Steering: Ford power-assisted rack and pinion with 2 turns lock to lock.

Brakes:

Front: Alcon 355 mm (asphalt) / 300 mm (gravel) diameter ventilated discs with 3-piston aluminium callipers.Rear: Alcon 260 mm diameter solid discs with 2-piston aluminium callipers. Hydraulic handbrake. Adjustable front / rear bias. Floor mounted movable pedal box

Wheels: 7 inch x 17 inch multi spoke with 630 mm tyres

Dimensions:

Overall length: 3960 mmWheelbase: 2480 mmOverall width:1805 mmWeight: 1000 kgsOverall height:1315 mm
